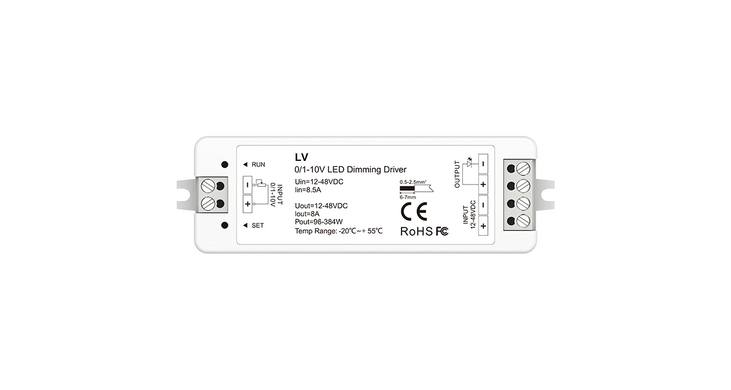

DEYA Controller LV

• Effective lighting control, provides wide functionality and compatibility with various types of dimmers and LED lighting.
• The input channel accepts a signal from 0 to 10 volts.
• The output channel generates a constant pulse width modulation (PWM) signal.
• Wide dimming range from 0 to 100%.
• Compatible with active or passive dimming systems from 0 to 10/1 to 10 volts, which allows solving compatibility problems of dimming systems between fluorescent lamps and LED lighting.
• PWM frequency selection between 500Hz, 2kHz, 8kHz or 16kHz.
• Overheat protection, overload protection, automatic recovery.

Technical characteristics:

• Input voltage: 12-48VDC;
• Output voltage: 12-48VDC;
• Input current: 8.5A;
• Output current: 1CH, 8A;
• Output power: 96W/192W/288W/384W (12V/24V/36V/48V);
• Input signal: 0/1-10V;
• PWM frequency: 500Hz, 2KHz, 8KHz, 16KHz;
• Output type: constant voltage;
• Dimming range: 0-100%;
• Working temperature: -20~+55ºС;
• Size: 97x33x18 millimeters;
• Degree of dust/moisture protection: IP20;

Warranty: 5 years.
