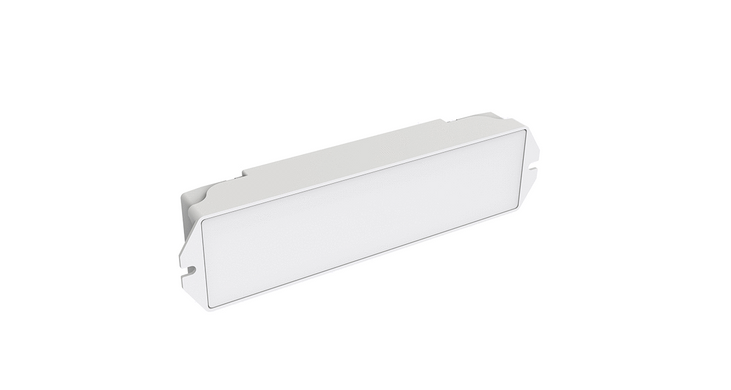

DEYA EV3 LED repeater

• The EV3 LED controller is a three-channel constant voltage amplifier designed to expand the output power of lighting systems.
• Operates on 12–36 VDC DC voltage, providing up to 6A per channel.
• Accepts PWM control signal, allowing it to be amplified in series or parallel for unlimited increase in output power.
• Ideal for single-color or RGB LED strips and constant voltage modules.

Characteristics:

• Input voltage: 12–36 VDC;
• Input current: up to 18.5 A;
• Input signal: PWM;
• Output voltage: 3 x (12–36) VDC;
• Output current: 6 A per channel (3 channels);
• Output power: up to 216 W per channel (depends on voltage);
• Output type: constant voltage;
• Connection: parallel or serial;
• Protection: against reverse polarity, overheating, short circuit;
• Operating temperature: from -30°C to +55°C;
• Maximum case temperature: +85°C;
• Protection class: IP20;
• EMC standards: EN IEC 55015, EN IEC 61547;
• Safety standards: EN 61347-1/-2, EN 62493;
• Dimensions: 178 x 50 x 38 millimeters;
• Weight: 0.129 kilograms;
• Certificates: CE, RoHS, FCC;

Warranty: 5 years.
