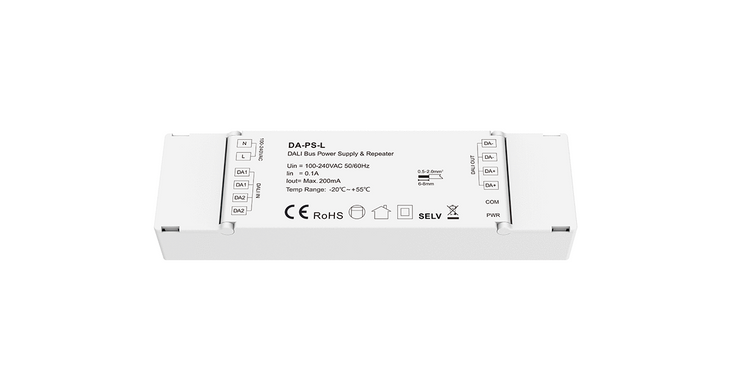

DEYA LED repeater and power supply DA-PS-L

• This DALI repeater with integrated power supply is designed to amplify and transmit DALI signals (bidirectional). It provides transmission of DALI commands from any control device to all DALI lines.
• Provides electrical isolation between the master control loop and the slave control loop.
• Supports star or cascade network configuration, requiring only one wizard to manage.
• A star network with several repeaters can be installed in one master application.
• Cascading network configuration supports up to 3 repeaters in series.
• Extends the length of the DALI line from 300 to 600 meters.
• Maximum output current 200mA to power the entire DALI line.
• Does not increase the maximum number of DALI devices. The maximum number of DALI devices in the common network (master and slave circuits) is limited to 64, while the devices can be freely distributed in the slave circuit.
• No additional DALI power supply is required for each slave DALI circuit.

Technical characteristics:

• Input voltage: 100-240VAC;
• Power supply frequency: 50/60 Hz;
• Input current: 0.1A;
• Output current: Max. 200 mA;
• Input/output signal: DALI;
• Operating temperature: -20~+55º С;
• Protection: From overheating;
• Size: L135 x W40 x H23 millimeters;
• Weight: 0.082 kilograms;
• Certification: CE, EMC;
