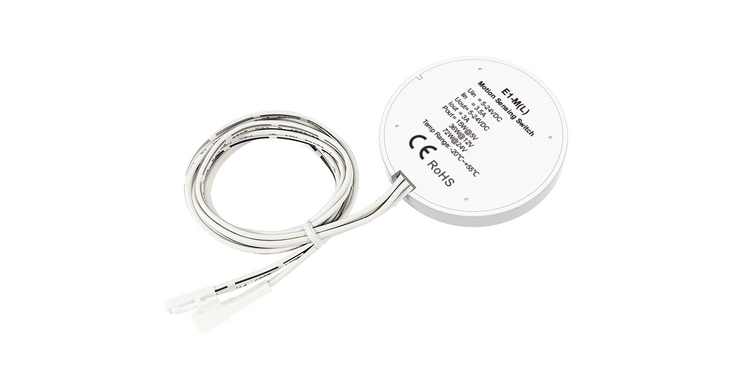

DEYA E1-M(L) motion sensor

• Motion sensor with a 5.8 GHz wireless radar module, designed to automatically turn on and off low-voltage LED lamps.
• The sensor is capable of recognizing human movement through non-metallic materials such as wood, plastic, glass, and acrylic.
• It has a compact, thin design and is mounted without cutting holes - it is installed by gluing and can be hidden.
• When motion is detected, the light turns on, and after the delay ends, it automatically turns off.
• The model supports adjustment of the triggering distance and the shutdown delay time.

Features:

• Built-in 5.8 GHz radar module for motion detection.
• Works through non-metallic materials (wood, plastic, glass, acrylic).
• Detection distance: from 0.5-5 meters.
• Detection angle: 120°.
• Five power-off delay modes: 10; 30; 60; 180; 300 seconds.
• Four levels of activation distance: 5 meters, 3 meters, 1.5 meters, 0.5 meters.
• Slim design, installation without cutting holes, possibility of concealed installation.
• Suitable for illuminating furniture, cabinets, wine racks, stairs, corridors, halls and other areas.

Characteristics:

• Input voltage: 5–24 VDC;
• Output voltage: 12–48 VDC;
• Output current: 3A;
• Output power: 15–72 W;
• PWM frequency: 2000Hz;
• Operating temperature: -20 °C ~ +55 °C;
• Protection: against polarity reversal;
• Size: 90×130 millimeters;
• Weight: 0.036 kilograms;
• Safety standards: EN 61347-1/-2, EN 62493;
• EMC: EN IEC 55015, EN IEC 61547;
• Certification: CE, RoHS;

Warranty: 5 years.
